Application

Brackish Water

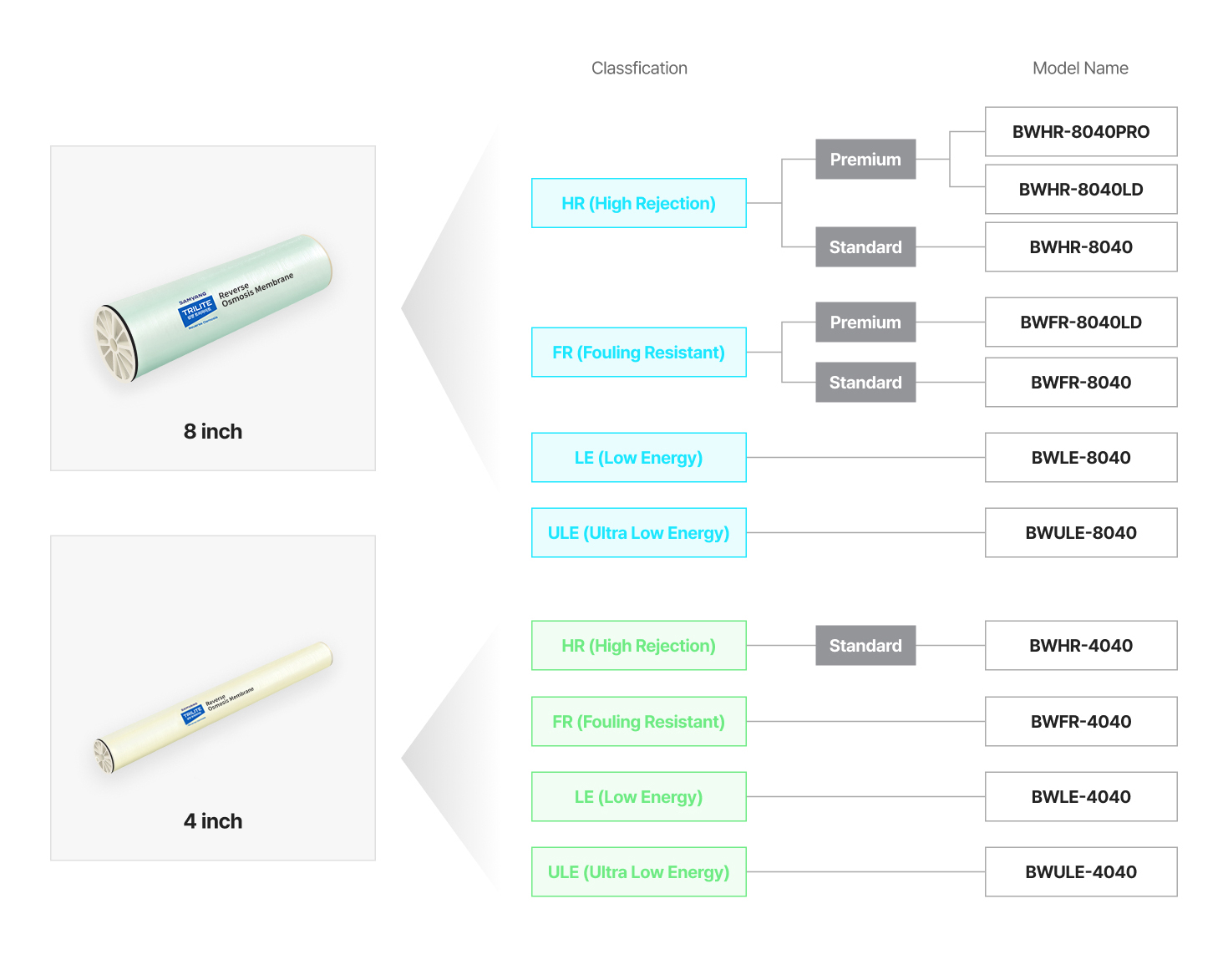

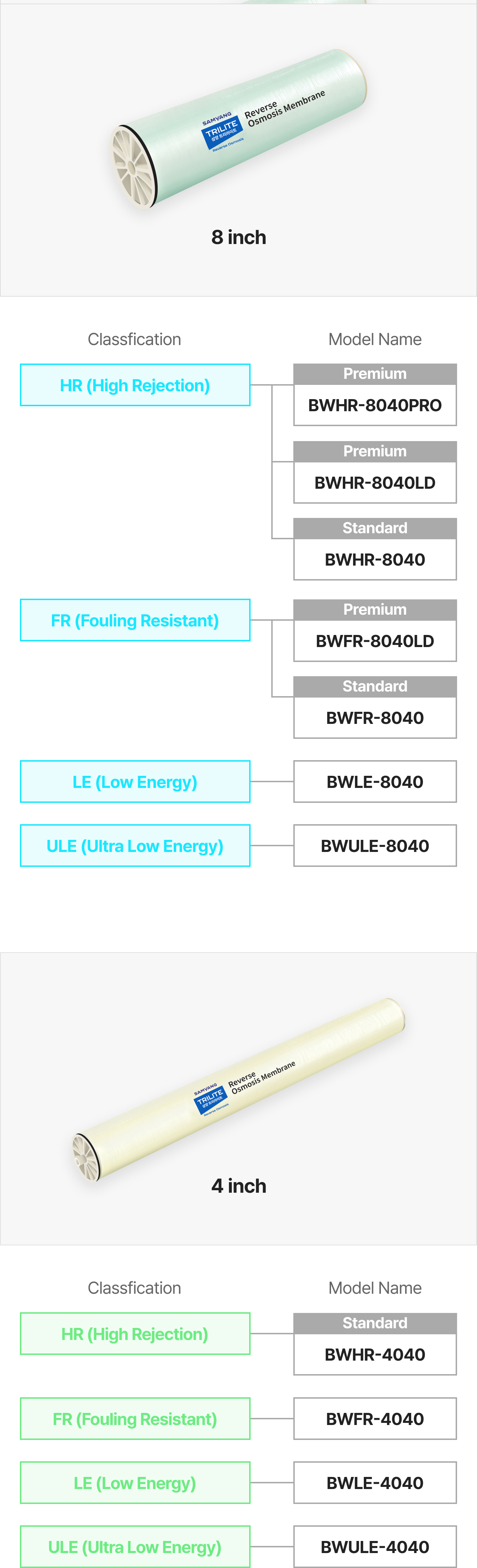

LINE-UP

Product

HR(High Rejection) Series

It is characterized by its low operating pressure and a high rate of treated water quantity and removal.
The excellent removal performance of TDS, TOC, and SiO2 allows for a wide range of applications in the production of pure water for the purpose of producing ultrapure water used in the electronics and electrical industries.

(Application range: Feed water with a TDS below 10,000ppm)

Applications

General water treatment (Industrial/commercial water, groundwater, wastewater, etc.), High-purity demand industries (electronics/semiconductors), etc.

Product Specifications & Test Conditions

Product Specifications & Test Conditions
BWHR-
8040PRO
BWHR-
8040LD
BWHR-
8040
BWHR-
4040
BWHR-
8040B
BWHR-
4040B
Active Membrane Area
ft2 (m2)
400 (37.2) 400 (37.2) 400 (37.2) 100 (9.3) 400 (37.2) 90 (8.4)
Permeate Flow
GPD (m3/day)
11,500
(43.5)
10,500
(39.7)
10,500
(39.7)
2,800
(10.6)
10,500
(39.7)
2,400
(9.1)
Typical Rejection Rate
%
99.8 99.7 99.7 99.6 99.6 99.6
Feed Spacer Thickness
mil
34-LD 34-LD 28 28 34 34
Size Diameter
in (mm)
7.9 (201) 7.9 (201) 7.9 (201) 3.9 (99.7) 7.9 (201) 3.9 (99.7)
Length
in (mm)
40 (1,016) 40 (1,016) 40 (1,016) 40 (1,016) 40 (1,016) 40 (1,016)
Test Conditions Test Pressure
psi (Mpa)
225 (1.55)
Concentration of NaCl Solution
ppm
2,000
Recovery Rate
%
15

Operating Limit & Conditions

Operating Limit & Conditions
8040 4040
Max. Operating Pressure 600psi (4.14Mpa / 42.18kgf/cm2) 600psi (4.14Mpa / 42.18kgf/cm2)
Max. Operating Temperature 45℃ (113℉) 45℃ (113℉)
Max. Feed Flow Rate 75gpm (17m3/hr) 16gpm (3.6m3/hr)
Max. Feed SDI15 5.0 5.0
Max. Pressure Drop per Element 15psi (0.1Mpa / 1.05kgf/cm2) 15psi (0.1Mpa / 1.05kgf/cm2)
Allowed pH Range for Continuous Operation 2~11 2~11
Allowed pH Range for Chemical Cleaning 1~13 1~13
Free Chlorine Tolerance < 0.1ppm < 0.1ppm

FR(Fouling Resistant) Series

A fouling-resistant product achieved through special surface treatment, reducing the adsorption of contaminants on the membrane surface and preventing microbial proliferation. It is characterized by its low initial differential pressure, high fouling resistance, and excellent durability resulting in an extended membrane lifespan.

(Application range: Feed water with a TDS below 10,000ppm)

Applications

Public sewage reuse, wastewater reuse, treatment of raw water with high microbial contamination (COD), etc.

Product Specifications & Test Conditions

Product Specifications & Test Conditions
BWFR-8040LD BWFR-8040 BWFR-4040
Active Membrane Area
ft2 (m2)
400 (37.2) 400 (37.2) 90 (8.4)
Permeate Flow
GPD (m3/day)
10,500 (39.7) 10,500 (39.7) 2,200 (8.3)
Typical Rejection Rate
%
99.6 99.5 99.5
Feed Spacer Thickness
mil
34-LD 34 34
Size Diameter
in (mm)
7.9 (201) 7.9 (201) 3.9 (99.7)
Length
in (mm)
40 (1,016) 40 (1,016) 40 (1,016)
Test Conditions Test Pressure
psi (Mpa)
225 (1.55)
Concentration of NaCl Solution
ppm
2,000
Recovery Rate
%
15

Operating Limit & Conditions

Operating Limit & Conditions
8040 4040
Max. Operating Pressure 600psi (4.14Mpa / 42.18kgf/cm2) 600psi (4.14Mpa / 42.18kgf/cm2)
Max. Operating Temperature 45℃ (113℉) 45℃ (113℉)
Max. Feed Flow Rate 75gpm (17m3/hr) 16gpm (3.6m3/hr)
Max. Feed SDI15 5.0 5.0
Max. Pressure Drop per Element 15psi (0.1Mpa / 1.05kgf/cm2) 15psi (0.1Mpa / 1.05kgf/cm2)
Allowed pH Range for Continuous Operation 2~11 2~11
Allowed pH Range for Chemical Cleaning 1~13 1~13
Free Chlorine Tolerance < 0.1ppm < 0.1ppm

LE(Low Energy) Series

Even at a low operating pressure (70% of the HR Series), it can consistently achieve a removal rate of over 99.5%. When applied to the system, it can reduce initial investment costs and maintenance expenses.

(Application range: Feed water with a TDS below 2,000ppm)

Applications

Treatment of low-TDS water (such as tap water) and 2nd-Pass RO, etc.

Product Specifications & Test Conditions

Product Specifications & Test Conditions
BWLE-8040 BWLE-4040
Active Membrane Area
ft2 (m2)
400 (37.2) 100 (9.3)
Permeate Flow
GPD (m3/day)
10,500 (39.7) 2,600 (9.8)
Typical Rejection Rate
%
99.5 99.5
Feed Spacer Thickness
mil
28 28
Size Diameter
in (mm)
7.9 (201) 3.9 (99.7)
Length
in (mm)
40 (1,016) 40 (1,016)
Test Conditions Test Pressure
psi (Mpa)
150 (1.03)
Concentration of NaCl Solution
ppm
1,500
Recovery Rate
%
15

Operating Limit & Conditions

Operating Limit & Conditions
8040 4040
Max. Operating Pressure 600psi (4.14Mpa / 42.18kgf/cm2) 600psi (4.14Mpa / 42.18kgf/cm2)
Max. Operating Temperature 45℃ (113℉) 45℃ (113℉)
Max. Feed Flow Rate 75gpm (17m3/hr) 16gpm (3.6m3/hr)
Max. Feed SDI15 5.0 5.0
Max. Pressure Drop per Element 15psi (0.1Mpa / 1.05kgf/cm2) 15psi (0.1Mpa / 1.05kgf/cm2)
Allowed pH Range for Continuous Operation 3~10 3~10
Allowed pH Range for Chemical Cleaning 2~12 2~12
Free Chlorine Tolerance < 0.1ppm < 0.1ppm

ULE(Ultra Low Energy) Series

Even at an ultra-low operating pressure (50% of the HR Series), it can consistently achieve a removal rate of over 99.2%. When applied to the system, it can reduce initial investment costs and maintenance expenses.

(Application range: Feed water with a TDS below 1,000ppm)

Applications

Drinking water facilities, etc.

Product Specifications & Test Conditions

Product Specifications & Test Conditions
BWULE-8040 BWULE-4040
Active Membrane Area
ft2 (m2)
400 (37.2) 100 (9.3)
Permeate Flow
GPD (m3/day)
12,800 (48.4) 2,600 (9.8)
Typical Rejection Rate
%
99.2 99.2
Feed Spacer Thickness
mil
28 28
Size Diameter
in (mm)
7.9 (201) 3.9 (99.7)
Length
in (mm)
40 (1,016) 40 (1,016)
Test Conditions Test Pressure
psi (Mpa)
100 (0.69)
Concentration of NaCl Solution
ppm
500
Recovery Rate
%
15

Operating Limit & Conditions

Operating Limit & Conditions
8040 4040
Max. Operating Pressure 600psi (4.14Mpa / 42.18kgf/cm2) 600psi (4.14Mpa / 42.18kgf/cm2)
Max. Operating Temperature 45℃ (113℉) 45℃ (113℉)
Max. Feed Flow Rate 75gpm (17m3/hr) 16gpm (3.6m3/hr)
Max. Feed SDI15 5.0 5.0
Max. Pressure Drop per Element 15psi (0.1Mpa / 1.05kgf/cm2) 15psi (0.1Mpa / 1.05kgf/cm2)
Allowed pH Range for Continuous Operation 3~10 3~10
Allowed pH Range for Chemical Cleaning 2~12 2~12
Free Chlorine Tolerance < 0.1ppm < 0.1ppm

TDS
