Ultrapure WaterㅣApplication/ProductㅣEDIㅣSamyang Corporation

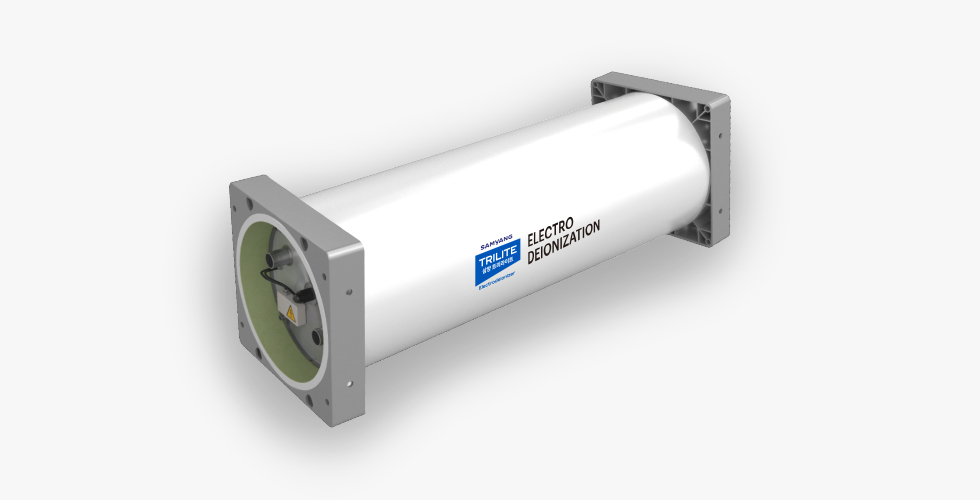

Application Ultrapure water (TN Series)

Ultrapure water (TN Series)

Product

Maximum Feed Water Specifications

Maximum Feed Water Specifications
	TU-04	TU-10	TU-14
Feed Water Conductivity Equivalent, including CO₂ and Silica	< 10㎲/㎝ (CO₂ < 1.25 ppm, Silica < 0.2 ppm)
Inlet Pressure	Max. 10㎏f/㎠
Inlet Temperature / pH	20~45℃ (Nor. 25℃) / 4 ~ 11

Typical Module Performance

Typical Module Performance
	TU-04	TU-10	TU-14
Capacity	4~6㎥/hr	10~13㎥/hr	14~16㎥/hr
Recovery	≥ 95%
Pressure Drop	< 2.5㎏f/㎠
DC Voltage / Amperage	0~500V / 0~6A
Product Resistivity	> 17.5㏁·㎝ (< 5㎲/㎝ : 2-Pass RO) , > 18㏁·㎝ (< 1㎲/㎝ : DI Water
Silica / Boron Removal	≥ 99%
Sodium / Chloride Removal	≥ 99.9%

Physical Specifications

Physical Specifications
	TU-04	TU-10	TU-14
Size	470㎜ID × 1,095㎜L	470㎜ID × 2,110㎜L	470㎜ID × 2,510㎜L
Weight	Empty : 180㎏ / Oper. : 250㎏	Empty : 360㎏ / Oper. : 500㎏	Empty : 380㎏ / Oper. : 560㎏
Material	Body : Glass Reinforced Plastic (GRP)
