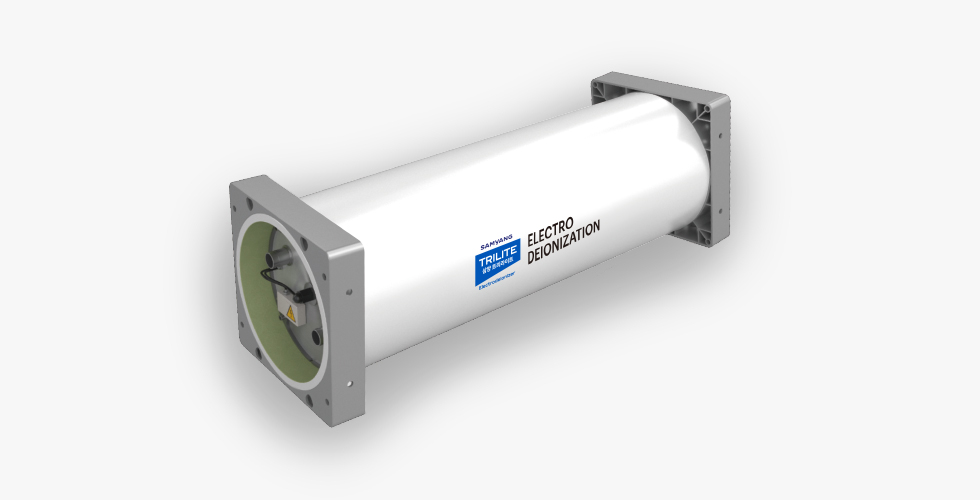

Application Demi water (TN Series)

Demi water (TN Series)

Product

Maximum Feed Water Specifications

Maximum Feed Water Specifications
TN-10 TN-12 TN-15
Feed Water
Conductivity
Equivalent,
including CO2 and Silica		 < 40㎲/㎝ (CO2 < 5 ppm, Silica < 0.5 ppm)
Inlet Pressure Max. 10㎏f/㎠
Inlet Temperature
/ pH		 5~45℃ (Nor. 25℃) / 4 ~ 11

Typical Module Performance

Typical Module Performance
TN-10 TN-12 TN-15
Capacity 10~12㎥/hr 12~15㎥/hr 15~18㎥/hr
Recovery 90 ~ 95%
Pressure Drop < 2.5㎏f/㎠
DC Voltage
/ Amperage		 0~600V / 0~6A
Product Resistivity < 16㏁·㎝
Silica
/ Boron Removal		 ≥ 95%
Sodium
/ Chloride Removal		 ≥ 99.8%

Physical Specifications

Physical Specifications
TN-10 TN-12 TN-15
Size 470㎜ID × 1,964㎜L 470㎜ID × 2,110㎜L 470㎜ID × 2,310㎜L
Weight Empty : 430㎏ / Oper. : 530㎏ Empty : 450㎏ / Oper. : 590㎏ Empty : 470㎏ / Oper. : 650㎏
Material Body : Glass Reinforced Plastic (GRP)

TDS

Technical
Data

Technical Data Table
